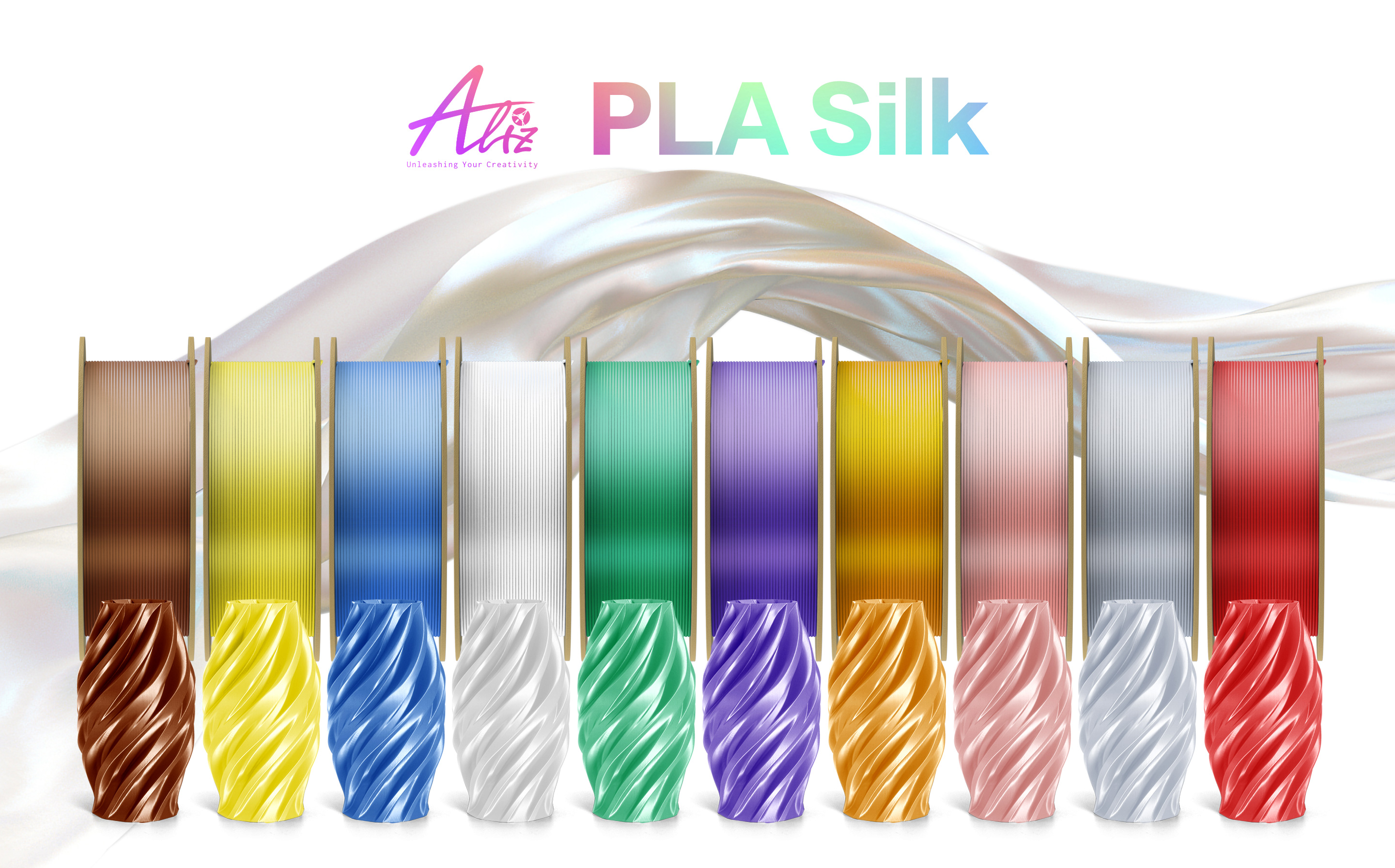

•Unique silk luster texture, smooth surface, bright color and strong visual impact;
•Excellent gloss, good mechanical properties and toughness;
•Non-irritating odor, environmental protection, non-toxic, and easy to print;
•The color is changeable and the transition is natural;

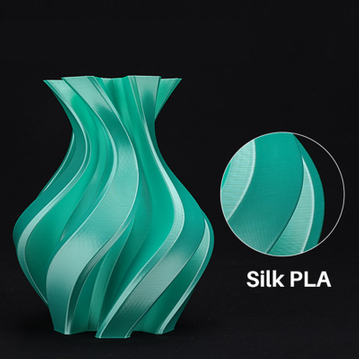

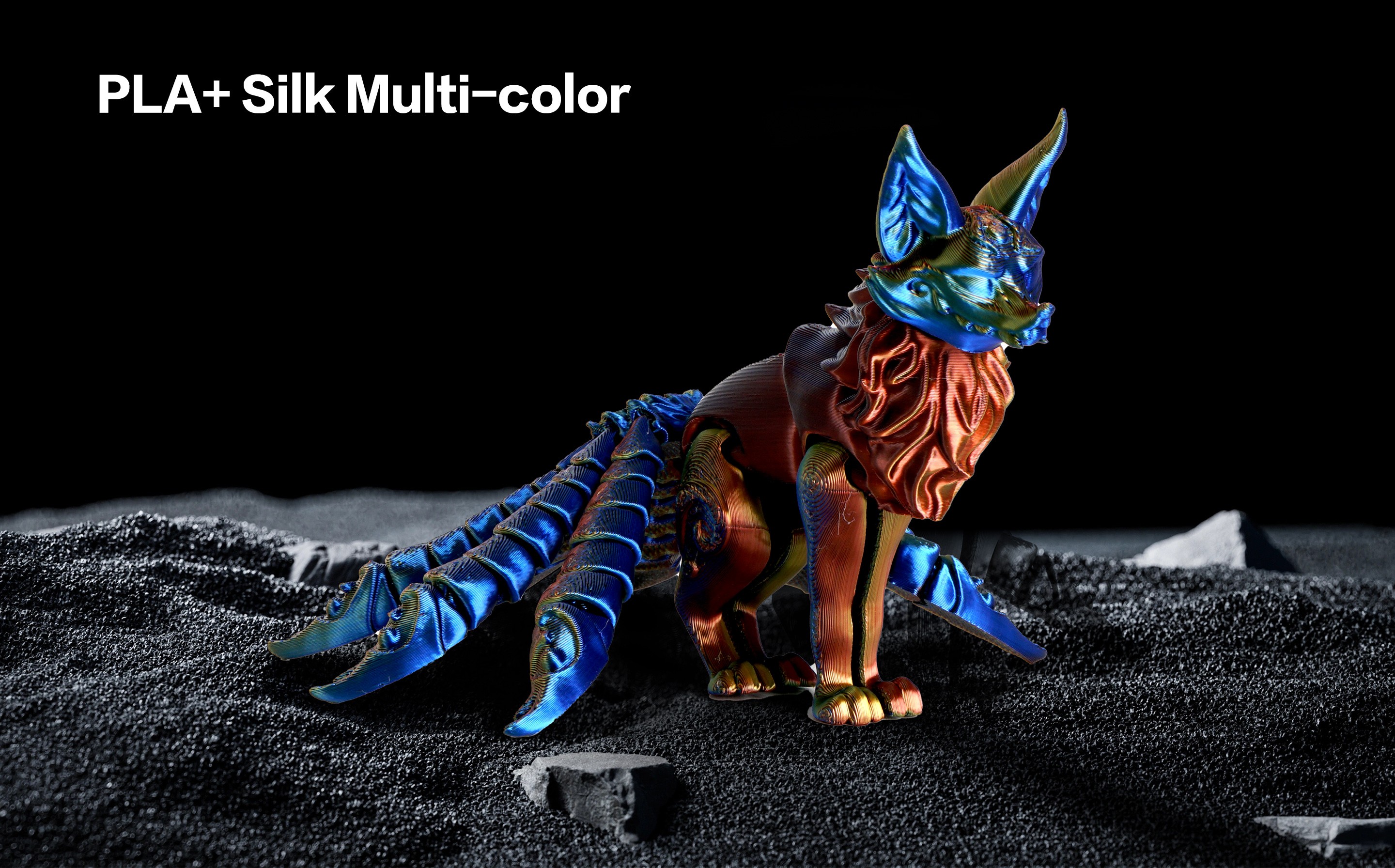

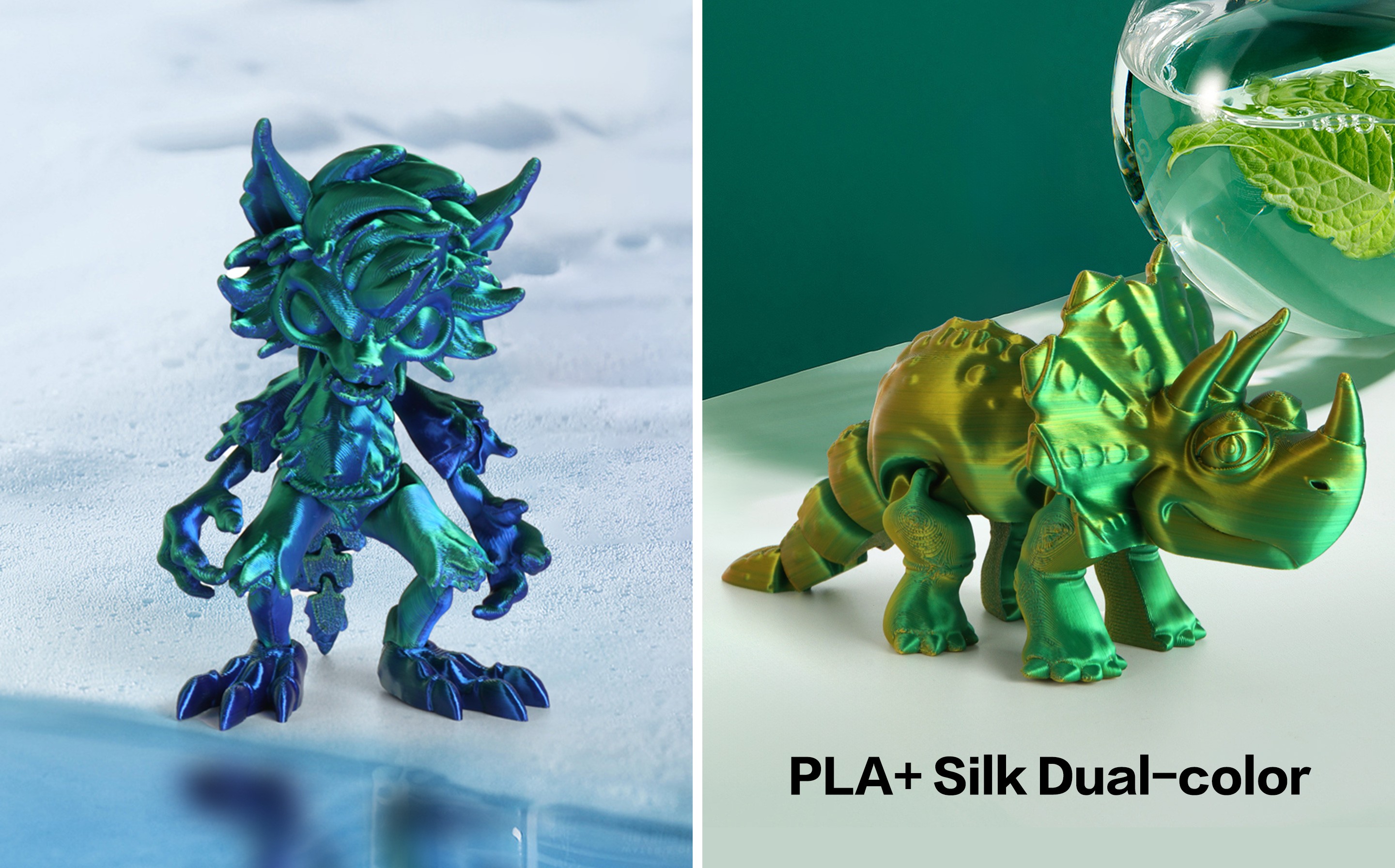

PLA Silk Printed Models can be directly used as a Decoration without coloring, but this Silk Filament Material is brittle and easy to break, so it is not suitable for structural parts.

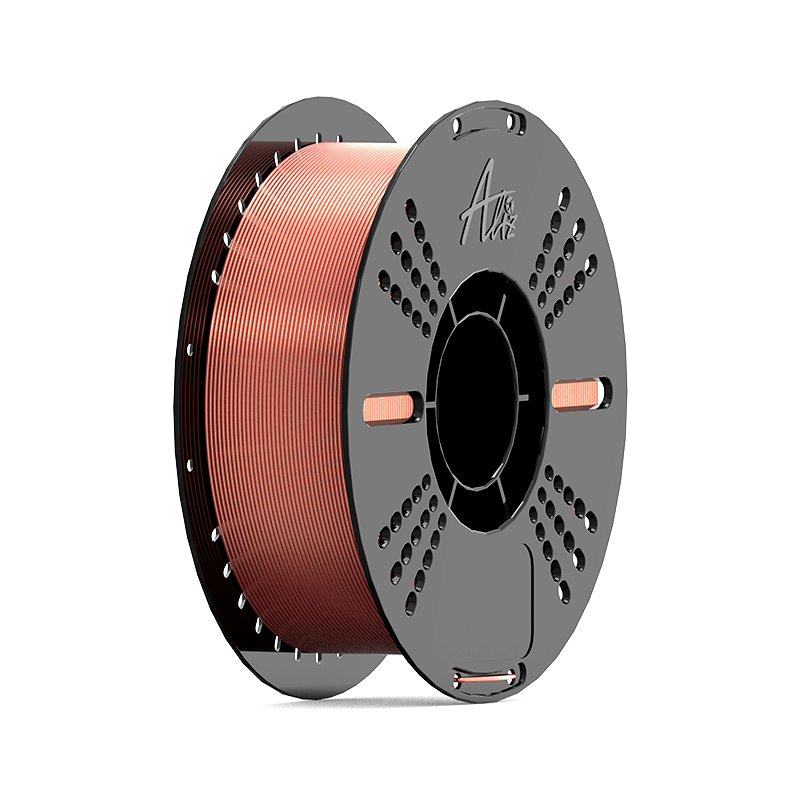

Dimensions:1.75mm/2.85mm
Weight of each roll:1kg/2.5kg

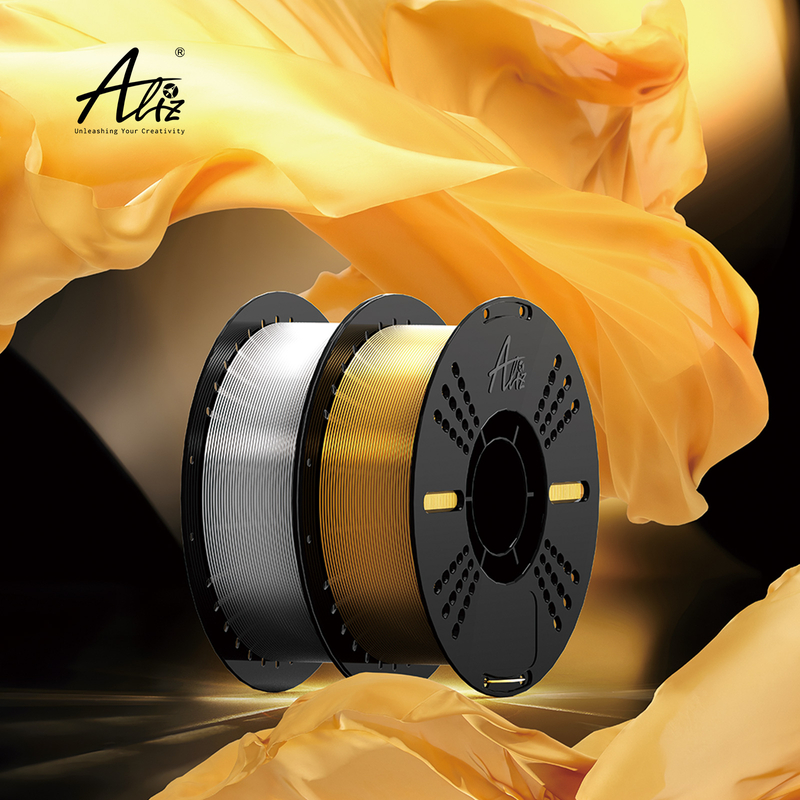

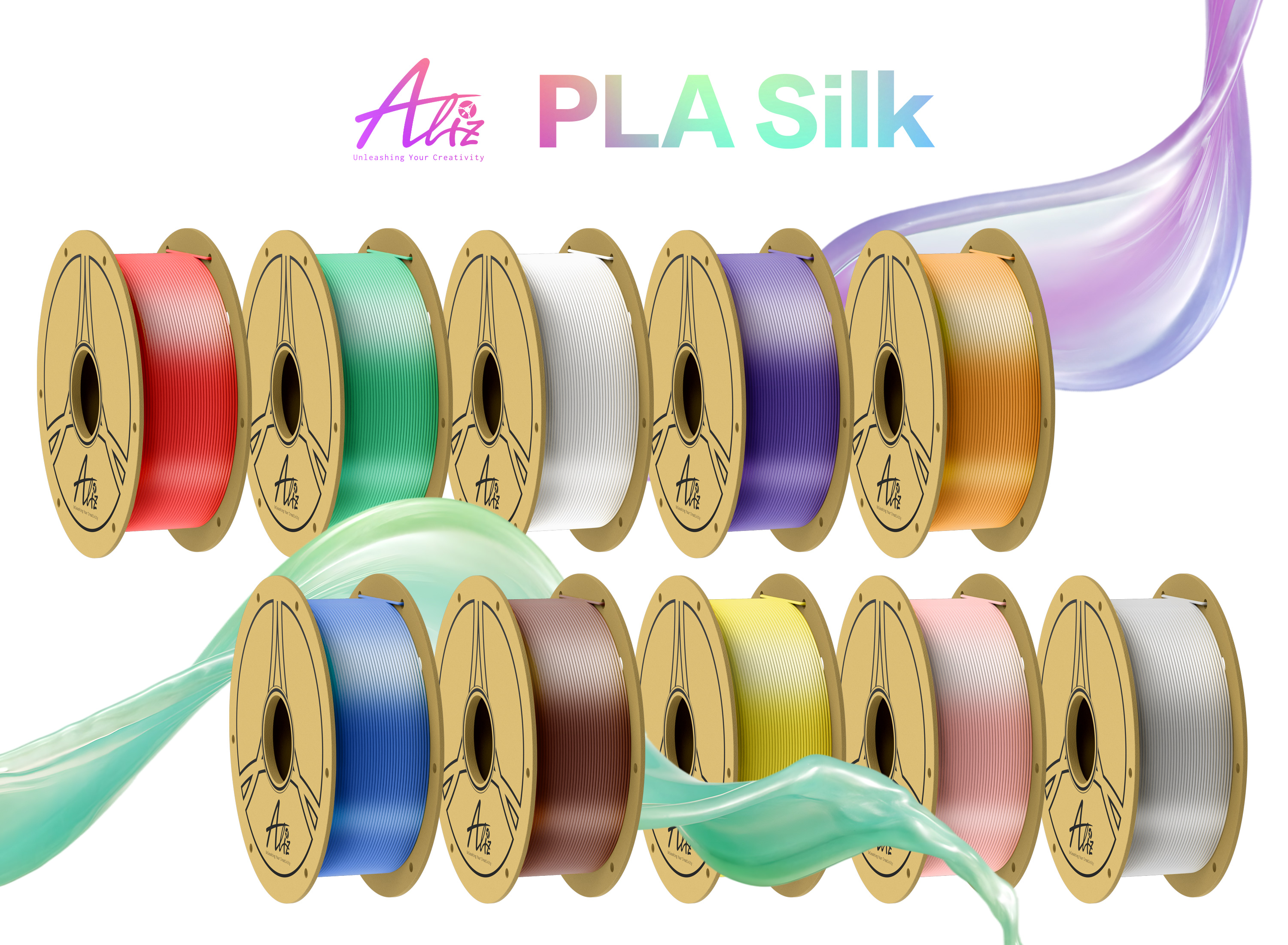

Silk Shiny Silver
Silk Silver
Silk Shiny Gold
Silk white
Silk Luxury Gold

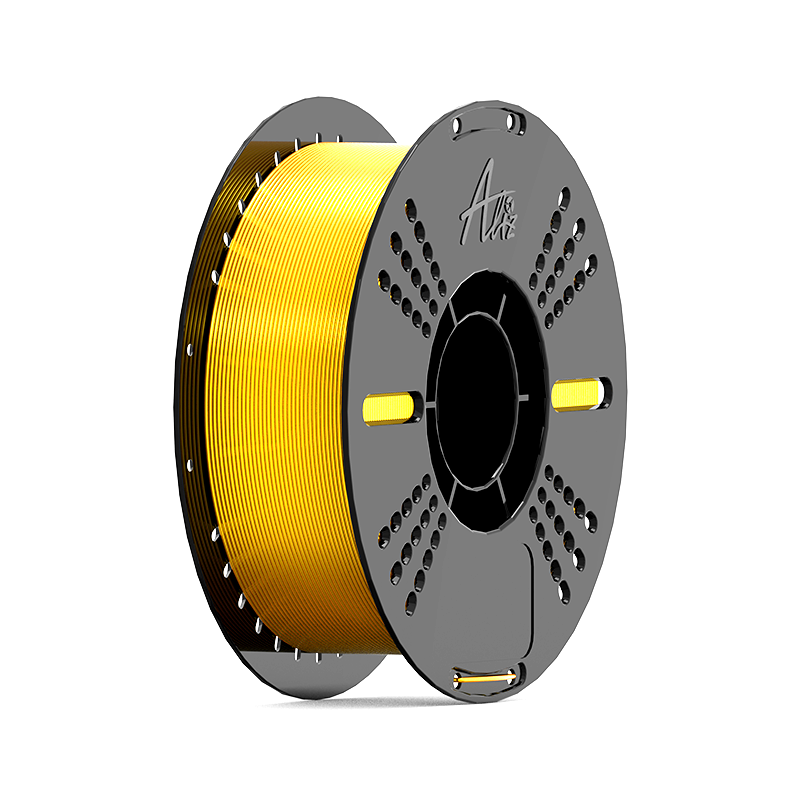

Silk Yellow
Silk Orange
Silk Pink
Silk Red

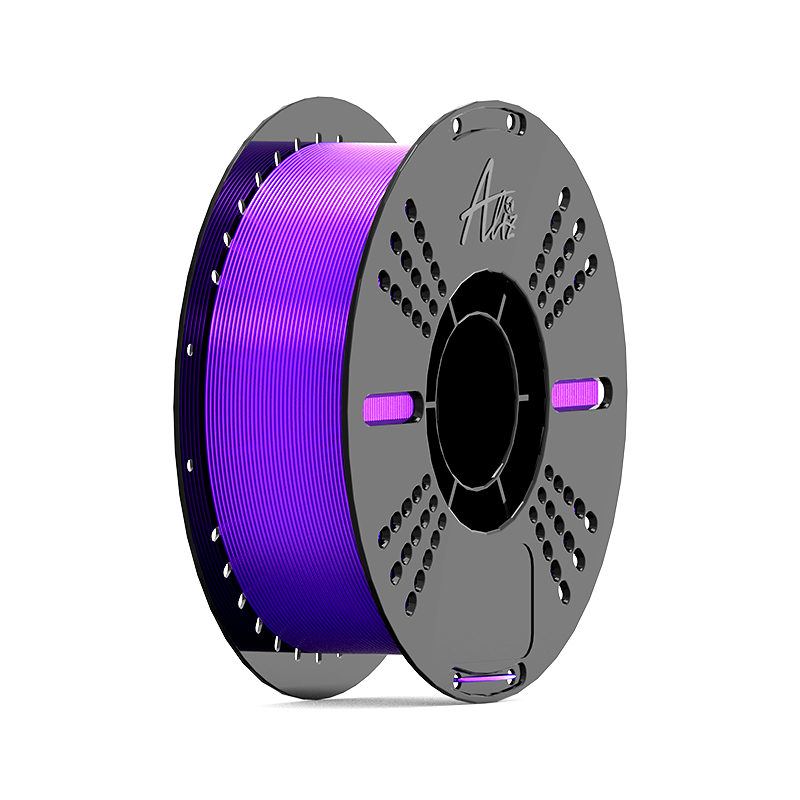

Silk Purple
Silk Blueviolet
Silk Blue

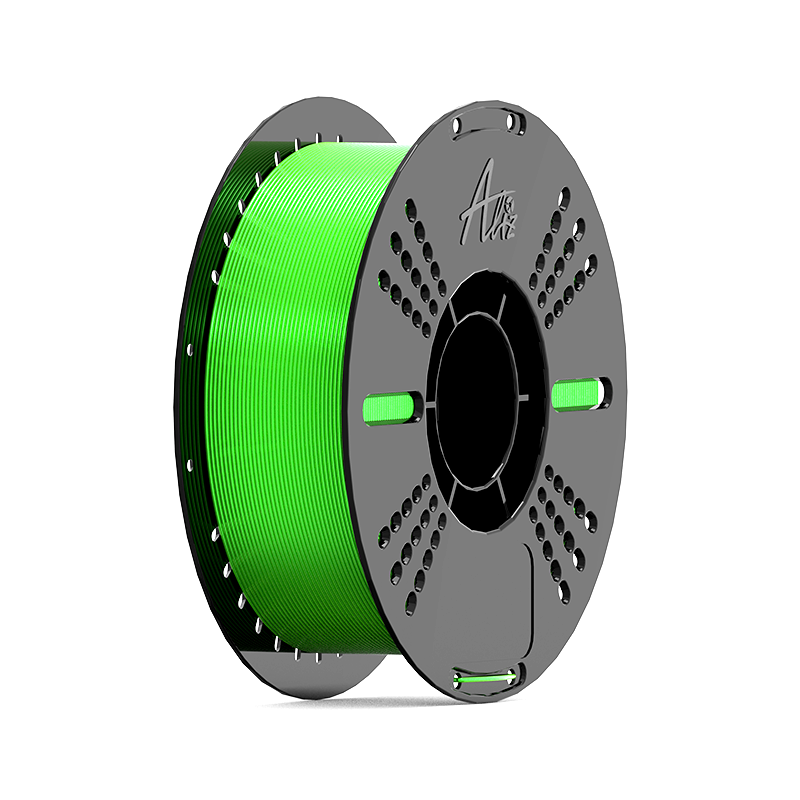

Silk Magic Green
Silk Milk Green
Silk Black
| Property | Testing Method | Testing Condition | Injection Molding Typical Value | 3D Printing X-Y Axis Typical Value | 3D Printing Z Axis Typical Value | Unit |
| Tensile Strength | ISO 527 | 50mm/min | 61.9 | 45.5±4 | 19.4±2 | MPa |
| Elongation at Break | ISO 527 | 50mm/min | 4.6 | 5.4±1 | 1.2±0.2 | % |
| Tensile Modulus | ISO 527 | 50mm/min | 2338.2 | 2055.1±100 | 1952.2±100 | MPa |
| Flexural Strength | ISO 178 | 2mm/min | 84.6 | 68.9±4 | 23.2±2 | MPa |
| Flexural Modulus | ISO 178 | 2mm/min | 2943.3 | 2647.5±100 | 2507.5±100 | MPa |
| Charpy Impact Strength | ISO 179 | 23℃ | 28.1 | 18.1±2 | 3.8±1 | KJ/㎡ |
| Izod Impact Strength | ISO 180 | 23℃ | 19 | 13.4±2 | 4.1±1 | KJ/㎡ |
| Property | Testing Method | Testing Condition | Typical Value | Unit |
| Density | ISO 1183 | Immersion | 1.25 | g/cm3 |
| Melt Flow index(MFR) | ISO 1133 | 210℃/2.16kg | 10-20 | g/10 min |
| Property | Testing Method | Testing Condition | Injection Molding Typical Value | 3D Printing Typical Value | Unit |
| Moisture Absorption | ISO 62 | 50%RH*23℃ | 0.5 | 0.6 | % |
| Property | Testing Result |
| Weak Acid Resistance | Not Resistant |
| Strong Acid Resistance | Not Resistant |
| Weak Base Resistance | Not Resistant |
| Strong Base Resistance | Not Resistant |
| Organic Solution Resistance | Not Resistant |
| Property | Testing Method | Testing Condition | Injection Molding Typical Value | 3D Printing X-Y Axis Typical Value | 3D Printing Z Axis Typical Value | Unit |
| Glass Transition Temperature | DSC | 10℃/min | 65.7 | ℃ | ||
| Melting Point | DSC | 10℃/min | 163 | ℃ | ||
| Decomposition Temperature | TGA | 20℃/min | N/A | ℃ | ||
| Heat Distortion Temperature | ISO 75 | 0.45MPa | 58.6 | 57.5 | 58.6 | ℃ |
| Heat Distortion Temperature | ISO 75 | 1.8MPa | 56 | 55.7 | 52.4 | ℃ |
| Vicat Softening Temperature | ISO 306 | 50℃/10N | 67.2 | 65.4 | 62.2 | ℃ |
| Printing Temperature | 220-230(℃) |
| Bed Temperature | 50-60(℃) |
| Wall Layers | 2 Layers |
| Top and Bottom Layers | 4 Layers |
| Infill | 100% |
| Ambient Temperature | 25℃ |
| Cooling Fan | 0-10% |
| Printing Speed | 30-50(mm/s) |
| Nozzle Diameter | 0.4 mm |
| Printing Temperature | 230(℃) |
| Bed Temperature | 55(℃) |
| Wall Layers | 2 Layers |
| Top and Bottom Layers | 4 Layers |
| Infill | 100% |
| Ambient Temperature | 25℃ |
| Cooling Fan | 10% |
| Printing Speed | 50 (mm/s) |
| Nozzle Diameter | 0.4 mm |
